OneDrive Storage Provider Setup

The OneDrive Storage Provider allows end-users to map in their OneDrive storage into container-based sessions. Access is provided via Microsoft’s OAuth interface using the Rclone Docker volume plugin.

Reference Docs:

• https://rclone.org/onedrive/

• https://docs.microsoft.com/en-us/azure/active-directory/develop/quickstart-register-app

• https://docs.microsoft.com/en-us/azure/active-directory/develop/active-directory-v2-protocols

Creating a Microsoft OAuth App

1. Login to the Microsoft Azure Portal: https://portal.azure.com//

2. Select Azure Active Directory.

Azure AD Control Panel

3. Select App Registrations.

App Registrations

4. Select New Registration.

5. Give the app a Name (e.g Kasm OneDrive Example).

6. In the Supported account types select Accounts in any organizational directory (Any Azure AD directory - Multitenant) and personal Microsoft accounts (e.g. Skype, Xbox).

7. In the Redirect URI, select Web, then enter the following URL , substituting the hostname of the Kasm deployment https://kasm.example.com/api/cloud_storage_callback

Warning

In this example, we walk through creating an integration where any Microsoft user can auth with the Kasm app. This is ideal for a public facing deployment. Other options are available for single-tenant and multi-tenant configurations.

Register an App

8. On the next page, the Application (client) ID is shown, save this value as the Client ID to be used in the next section.

9. Select Add a certificate or secret next to Client credentials.

Client Credentials

10. Select the Client secrets tab, then slick New client secret.

11. Enter a description and expiration then click Add.

12. The credentials are shown, save the Value as the Client Secret to be used in the next section.

Client Secret

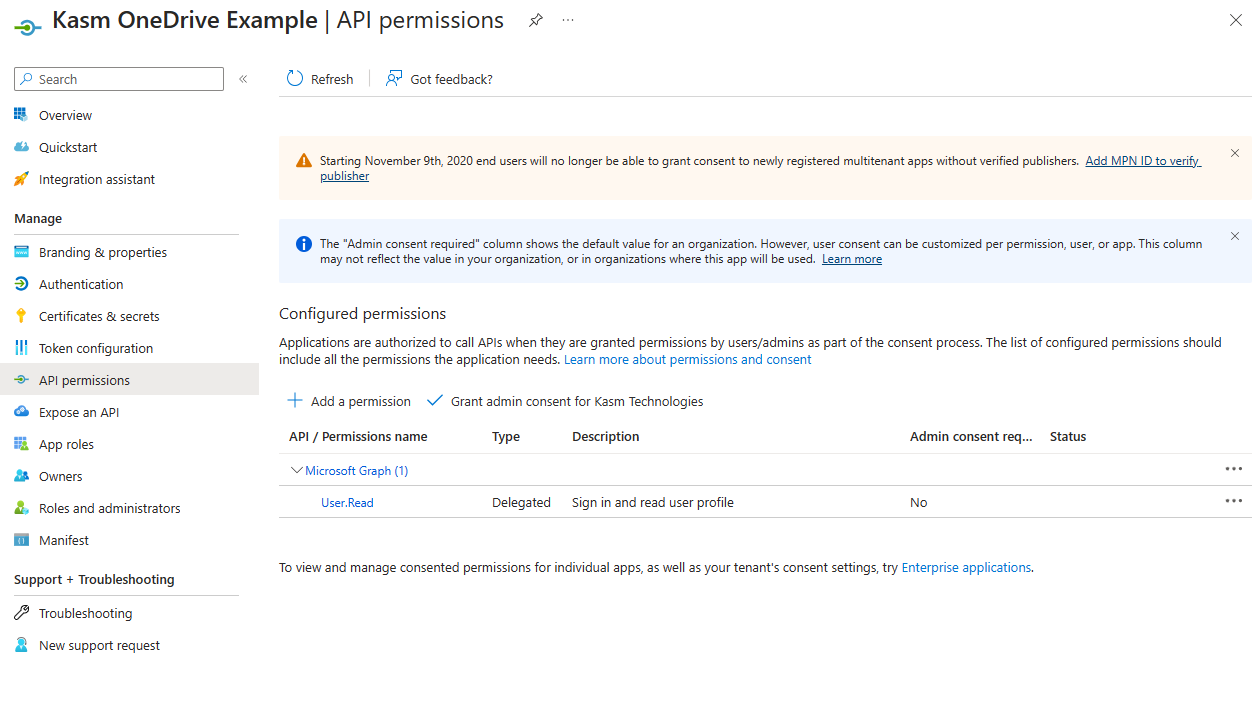

13. From the Manage menu on the left hand side, select API Permissions.

14. Select Add a Permission.

API Permissions

15. In the new window Select Microsoft Graph, then Delegated permissions.

16. Add all of the following permissions.

    Files.Read
    Files.Read.All
    Files.ReadWrite
    Files.ReadWrite.All
    offline_access
    Sites.Read.All
    User.Read


Add Permissions

17. Select the Overview section of the Azure app, then Select Endpoints. Note the OAuth 2.0 authorization endpoint (v2) and OAuth 2.0 token endpoint (v2) values for use in the next steps. Note: these will differ depending on the type of App created in the prior section (Internal vs Public vs Multi-Tenant)

Endpoints

Kasm Storage Provider Config

1. Log into the Kasm UI as an administrator.

2. Select Settings -> Storage -> Add.

3. Update the form with the following entries, using the Client ID and Client Secret gathered in the previous section.

Name	OneDrive
Storage Provider Type	OneDrive
Enabled	checked
Client ID	<client id>
Client Secret	<client secret>
Authorization URL	<OAuth 2.0 authorization endpoint (v2) value from Microsoft OAuth App>
Authorization URL Options	{"prompt" : "consent"}
Token URL	<OAuth 2.0 token endpoint (v2) value fom Microsoft OAuth App>
Redirect URL	https://<hostname>/api/cloud_storage_callback
Scope	Files.Read Files.ReadWrite Files.Read.All Files.ReadWrite.All Sites.Read.All offline_access openid email profile
Root Drive URL	https://graph.microsoft.com/v1.0/me/drive/root
Default Target	/onedrive
Volume Config	{ "driver" : "rclone", "driver_opts" : { "type" : "onedrive", "uid" : "1000", "gid" : "1000", "allow_other" : "true" } }
Mount Config	{}

4. Click Save to save the changes.

OneDrive Storage Mapping Configuration

1. From any page, select the profile icon at the top right of the page. Select Edit Profile.

Edit Profile

2. Select the Cloud Storage section, then Add Storage Mapping.

Add Storage Mapping

3. Select OneDrive from the dropdown, then select Next.

Configure Storage

4. The Microsoft Login page will appear. Login with the desired account.

Login

5. A consent screen will appear requesting access to the necessary permissions to access OneDrive.

Approve Kasm

6. A redirect will occur to the Workspaces dashboard. The new storage mapping can be seen in the Cloud Storage section of the profile.

Storage Mapping

7. Launch a new container-based session. Verify the Google Drive is mapped inside the session at the /onedrive location.

In Session View
